Topp Pro MXi.1222CFX is a Swiss-knife mixer that are equipped with array of useful features. This mixer come with two Hi-Z inputs therefore saving the need to purchase addition DI boxes in the case instrument inputs are needed. There are one-knob compressors that make audio mixing an ease to achieve audio loudness stability. The in-built effect provide wide range digital effect that can be used to shape the sound of the instruments, vocal and fx simulation. For ultimate flexibility, the mixer come with on-board MP3 player and USB audio interface, saving you from forking out extra the budget for external equipment.

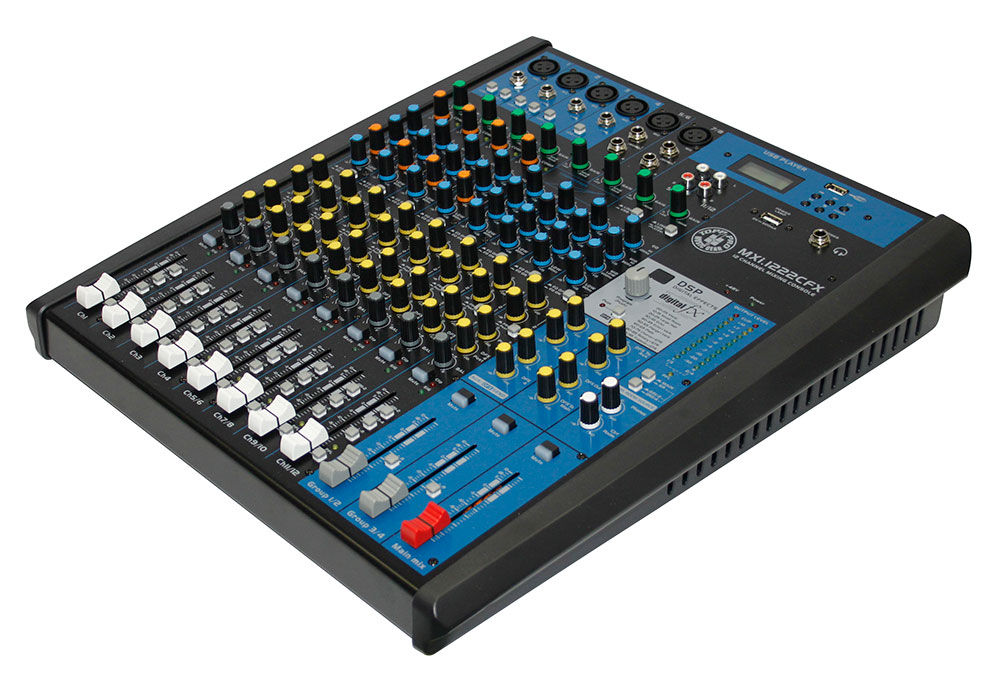

TOPP PRO PASSIVE MIXER - MXi.1222CFX

SKU: MXi.1222CFX
$489.99 Regular Price
$369.00Sale Price
Quantity
  • Mic
    input
    XLR with balanced
    Freq.
    response
    10Hz to 55KHz,+/-3dB
    Distortion
    (THD+N)
    <0.03% at +0dB ,22Hz~22KHz A-weighted
    Gain range 0dB to 50dB
    Max. Input +21 dB
    LOW CUT 75Hz
    SNR <-100dBr A-weighted
    Phantom
    power
    +48V with switch control
    Line input 1/4” TRS with balanced
    Frequency
    response
    10Hz to 55KHz,+/-3dB
    Distortion
    (THD+N)
    <0.03% at +0dB ,22Hz~22KHz A-weighted
    Sensitivity
    range
    +20dB~ -30dB
    Compressor GAIN: 0~9dB / THRESHOLD: 20dB--->5dB
    Stereo input
    channels

    Mic input XLR with balanced
    Line input 1/4' TRS with balanced
    Frequency
    response
    10Hz to 55KHz, +/-3dB
    Distortion
    (THD+N)
    <0.03% at +0dB ,22Hz~22KHz A-weighted
    Sensitivity
    range
    +20dBu~ -30dBu
    SNR <-100dBr A-weighted

    RCA input RCA with un-balanced
    Frequency
    response
    10Hz to 55KHz,+/-3dB
    Distortion
    (THD+N)
    <0.03% at +0dB ,22Hz~22KHz A-weighted
    Sensitivity
    range
    +20dBu~ -30dBu
    SNR <-100dBr A-weighted
    Channels EQ
    Channel Mono / Stereo
    High +/-15dB @12KHz / +/-15dB @12KHz
    Mid +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
    Low +/-15dB @80Hz / +/-15dB @80Hz
    Impedances
    Microphone
    input
    1.8K Ω
    All other input 10K Ω or greater
    Tape out 1K Ω
    All other out 120 Ω
    DSP section
    (options)

    A/D and D/A converters 24bit
    Type of
    effects
    Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
    Controls 100 position preset selector(10 preseter * 10
    variation), Mute switch & Foot-switching with LED
    indicator
    FOOT-SW TIP: FX - SLEEVE: GND
    Main mix
    section

    Max. MAIN
    MIX output
    +26dBu XLR balanced (+20dBu un-balanced)
    AUX range OFF to +10dB
    Fader range OFF to +10dB
    PHONES/
    CONTROL-ROOM
    range
    OFF to +10dB
    Hum
    & Noise
    <-80dB @ 20Hz~22KHz A-weighted, 1 channel &
    MAIN level:0dB, the other: Minimum
    Crosstalk <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN
    level:0dB, the other :minimum
    Power
    supply

    Main
    voltage
    100-240V~ 50/60Hz
    Fuse T1.25A AC250V
    Rated
    power
    consumption
    30W
